聚亞胺膠帶
特性
- 優良的耐熱性，連續使用溫度可直接到達+260℃，穩定度極佳。
- 具有優良的抗強酸及強鹼的耐藥性。
- 電路板防護遮蔽膠帶，黏合劑為烴硅氧(Silicon)，去除後絕不殘膠。
- 良好的高電氣特性與絕緣性。
主要用途
- 離型用材料 / 管路絕緣 / 電線電纜/膠帶原膜 / 熱壓貼合工程
Features:
API-Tape is polyimide film tape coated with silicone adhesive. It can protect gold contacts ofPCB during wave soldering process and hot air leveling. Also designed for the high-temperature coils insulation and for the generator, capacitor & transformer production.
Size:
Tape Length (M) 33, Tape Width (mm) 0～500 availableNote:
The above data should be considered representative only and should not be used for specification purposes.

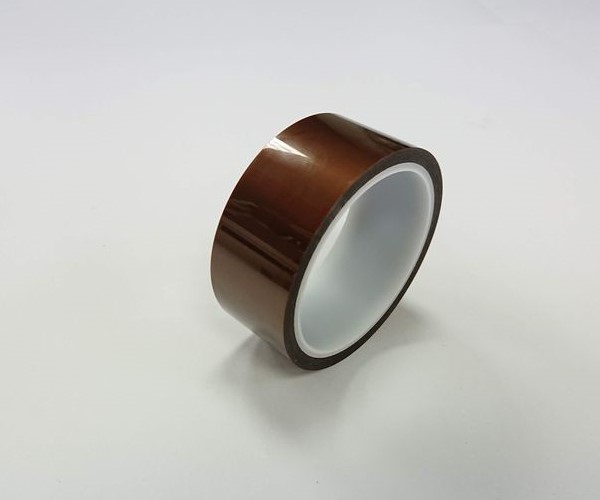

| ITEM | Test Method | API-850 | API-650 | API-450 | API-100D | |
| Adhesive Type | Silicone | |||||
| Backing | Polyimide | |||||
| Backing Thickness (mil/mm) | ASTM D1000 | 2.0 / 0.05 | 1.0 / 0.025 | |||
| Total Thickness (mil/mm) | ASTM D1000 | 3.5 / 0.085 | 2.48 / 0.062 | 1.8 / 0.045 | 4 / 0.1 | |
| Color | Amber | |||||
| Adhesion to Steel (gm/25mm) | ASTM D1000 | 800 | 800 | 350 | 800 | |
| Tensile Strength (kg/25mm) | ASTM D1000 | 12 | 9 | 8 | 13 | |
| Elongation (%) | ASTM D1000 | 90 | 60 | 40 | 70 | |
| Dielectric Strength (Kv) | ASTM D149 | 13 | 6 | 5 | 6.5 | |
| Insulation Class (°C) | UL 510 | UL H / 200 | ||||
| Temperature Range (°C/°F) | - 73~260℃ / -99~500℉ | |||||
| Tape of Length (M) | 33 | |||||
| Tape of Width (mm) | 1000 | |||||

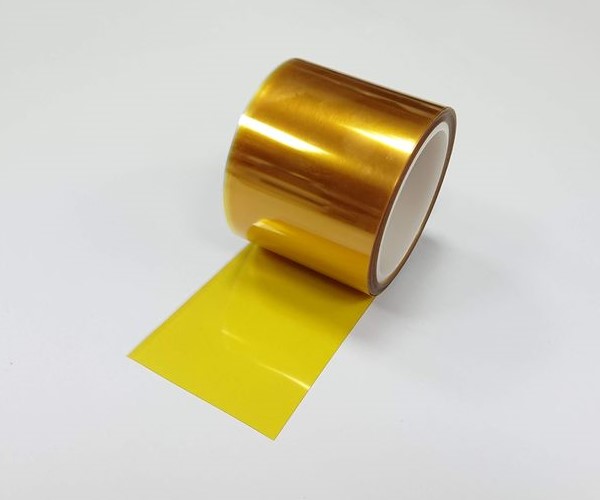

API-100D

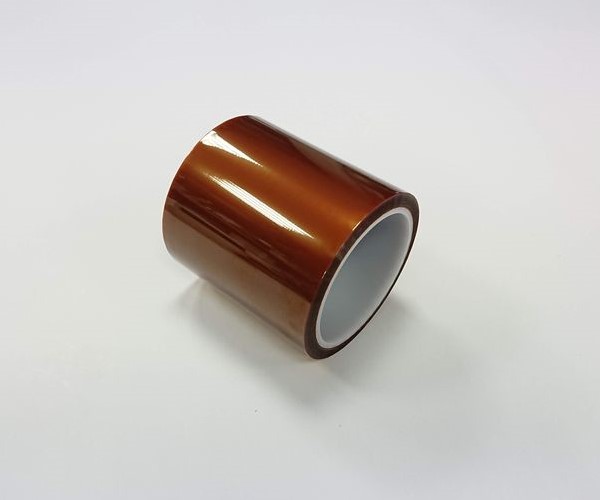

API-450
API-650
